GL600 is a 2G/3G/4G Smart Electronic Lock, with a built-in10400maH battery, G-sensor, and RFID reader, and monitor the container or asset's location and door status. Through the wireless technology, the User can open the GPS lock remotely by SMS password or (android or IOS) app. If there is no cellular network, the user can also open the lock with the authorized RFID key on the spot.

gis-solution

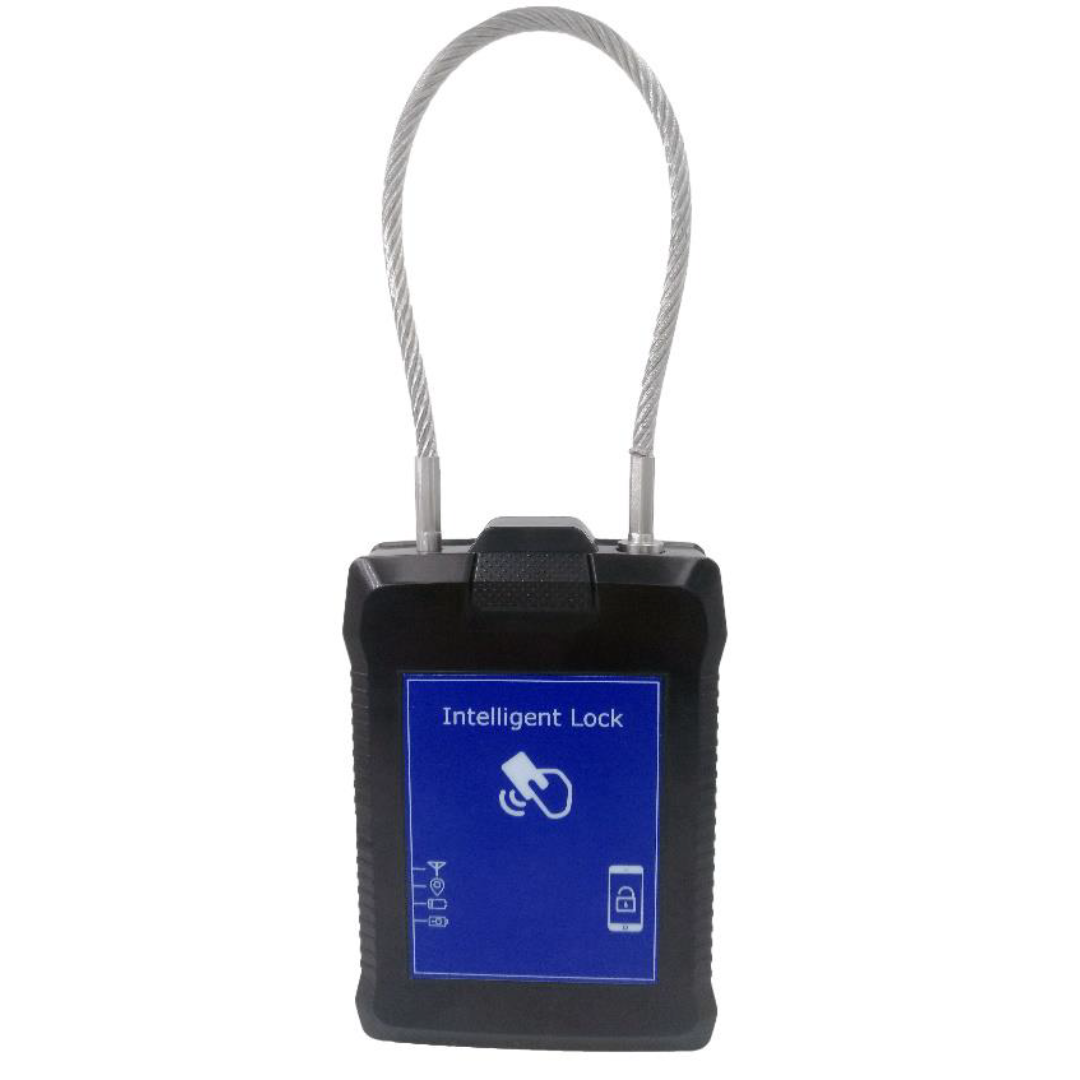

GL600 Smart Electronic Lock

Specifications
Items Description
Size 195mm x 114mm x 37mm
Weight 1000g( Include main unit and 35CM Lock rope)
Material Engineering plastic
GPS Module Skylab 12BL
GSM module Quectel M26 or UC15 or EC25
Working temperature -20°C -- +80°C
Store temperature -40°C -- +80°C
Humidity 5%—99%
Standard battery Rechargeable battery 10400mAh
Average working current <90 mA
Average current standby <100uA
Working hour 2G device(10400mAh) normal working mode: 100 hours
3G device(10400mAh) normal working mode: 70 hours
Waterproof IP67
Transmission mode Support TCP(GPRS) or SMS(short message
